Metallic Anechoic Wedges
Perforated Metal Anechoic Wedges for Anechoic Chambers & NVH Laboratories
Summary: Metallic anechoic wedges are engineered acoustic absorption modules built from precision perforated metal casings filled with a high-density, fiberglass sound absorbing core, designed to eliminate reflections in anechoic chambers while offering far greater fire resistance, mechanical durability, and hygiene than foam wedges. This page is written for anechoic chamber manufacturers, automotive NVH labs, aerospace test facilities, and acoustic laboratories in India who are specifying metallic anechoic wedges, comparing them against foam alternatives, or trying to understand what depth and perforation specifications actually determine performance.
- Fire resistant, durable and hygienic
- Design, manufacture, installation & commissioning
- ISO 9001:2015 certified manufacturer
Get a project quote
Tell us about your requirement and site. Our team typically responds within 24 hours on business days.
What Are Metallic Anechoic Wedges?

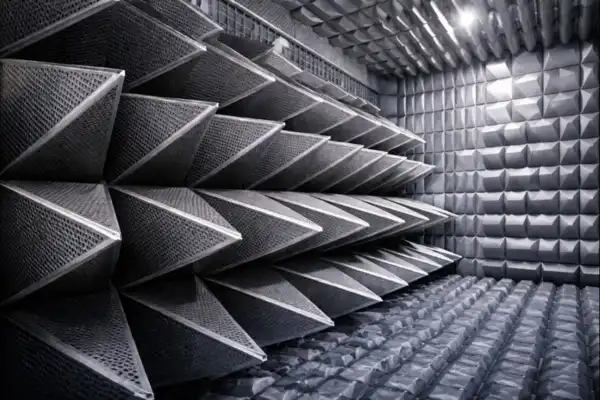

Metallic anechoic wedges are pyramid or wedge-shaped acoustic absorption modules built from a precision perforated metal outer casing filled with a high-density, fiberglass sound absorbing core, installed on chamber walls and ceilings to absorb incident sound waves rather than reflect them. The wedge’s geometric profile forces multiple internal reflections as sound enters through the perforated casing, allowing acoustic energy to dissipate within the absorptive core before it can bounce back into the test space. Unlike conventional foam absorbers, metallic anechoic wedges are built for industrial, research, and high-performance testing chambers where structural integrity, fire safety, and long-term environmental resistance matter as much as raw absorption performance. If you needed the one-line definition, that’s it. The sections below cover what actually determines whether a metallic wedge system performs to its rated specification once installed.
Why Automotive, Aerospace, and Research Labs Are Switching From Foam to Metallic Anechoic Wedges
Foam absorbers degrade under humidity, temperature cycling, UV exposure, and age, and in demanding industrial test environments, engine test cells, automotive NVH chambers, aerospace acoustic labs, that degradation directly threatens measurement consistency over a chamber’s operating life. Chamber-level acoustic qualification against standards such as ISO 3745 and ISO 3744 assumes the installed absorptive lining continues to perform as tested, which becomes an unreliable assumption once foam has begun to sag, crack, or lose density years into service. This is why anechoic chamber manufacturers and test labs are increasingly specifying metallic anechoic wedges for their combination of non-combustible fire performance, mechanical robustness, and long-term acoustic stability, particularly in facilities where fire risk, heavy use, or hygiene requirements make foam a liability rather than a convenience. This guide explains what to check in a metallic wedge specification before you commit to a manufacturer.
Specifications, Benefits, Applications & Installation Process
| Benefit | Impact |
|---|---|
| Fire safety | Non-flammable design eliminates combustible foam risk |
| Long-term stability | No degradation from humidity, heat, or age |
| Mechanical durability | Rigid structure resists deformation and impact |
| Lower lifecycle cost | Reduces long-term replacement versus foam |
| Hygiene | Cleanable surface suits sensitive or regulated environments |
| Consistent performance | Acoustic accuracy maintained under heavy, continuous use |
| Design flexibility | Powder-coated finish available in multiple colours |
| Application | Typical Facility |
|---|---|
| Automotive NVH testing chambers | Vehicle and component noise testing |
| Aerospace acoustic testing facilities | Aircraft component and engine testing |
| Electroacoustic product testing labs | Speaker and audio device evaluation |
| Engine test cell acoustic treatment | Engine and powertrain noise testing |
| Industrial noise testing spaces | Heavy machinery and equipment testing |
| Defense and telecommunications facilities | Precision acoustic control environments |
| Research institutions | Acoustic research requiring long-term stability |
| Step | Action |
|---|---|
| 1. Frequency requirement study | Confirm target frequency range and required wedge depth |
| 2. Wedge fabrication | Perforated metal casing formed and fiberglass core fitted |
| 3. Surface finishing | Powder coating applied for corrosion resistance |
| 4. Support system engineering | Frame-mounted or modular fixing system designed |
| 5. Chamber surface preparation | Walls and ceiling prepared for full-coverage mounting |
| 6. Wedge installation | Modules fixed with no reflective gaps between units |
| 7. Acoustic qualification | Installed performance verified against ISO 3744/3745 |
Technical Data Sheet
| Parameter | Specification |
|---|---|
| Product type | Metallic anechoic wedge system |
| Outer structure | Precision perforated metal casing |
| Core material | High-density sound absorbing infill (fiberglass) |
| Frequency performance | Broadband absorption, depth-tunable across the range |
| Fire performance | Non-combustible / fire-resistant design |
| Structural strength | High mechanical durability |
| Depth options | Customisable based on frequency targets |
| Surface finish | Powder-coated, corrosion-resistant |
| Installation method | Frame-mounted, modular fixing system |
| Application areas | Anechoic chambers, acoustic laboratories, industrial test spaces |
Why the Perforation Pattern on the Metal Casing Matters as Much as the Core Material
Most specification conversations around metallic anechoic wedges focus entirely on the fiberglass core, but the perforated metal casing surrounding it is doing acoustic work of its own, not just acting as a protective shell. The perforation ratio, the percentage of open area, and the hole size relative to the wavelength of sound at your target frequency determine how much incident sound actually reaches the absorptive core versus reflecting off the metal surface itself. A casing with too little open area, or hole spacing too coarse for the frequencies you need to absorb, can turn an otherwise well-engineered fiberglass core into a partial reflector, especially at higher frequencies where the wavelength approaches the scale of the perforation pattern. When comparing metallic anechoic wedges manufacturers, ask specifically about perforation ratio and hole geometry relative to your target frequency range, not just the core material’s absorption rating in isolation.
Depth Determines Frequency Range: Why "Broadband" Needs a Depth Number Next to It
A metallic anechoic wedge’s frequency performance is not a fixed property of the product line, it is a function of wedge depth, and this is exactly why depth is offered as a customisable specification rather than a fixed dimension. A shallower wedge configuration absorbs efficiently across mid and high frequencies and suits general NVH, electroacoustic, and laboratory testing chambers. A deeper wedge configuration of the same underlying casing and core design extends effective absorption further down into low frequencies, which is what large automotive and engine test chambers typically require. This is why two accurate descriptions of the same metallic wedge product line can sound contradictory, one citing broadband mid-to-high frequency performance, another citing low frequency capability for vehicle and engine testing, without actually disagreeing, provided the wedge depth is specified for each case. Before ordering, confirm the exact wedge depth quoted against your chamber’s target cut-off frequency, since “broadband” or “low frequency” without a depth figure attached is an incomplete specification either way.
Why Hygiene and Cleanability Quietly Matter in Pharma-Adjacent and Regulated Test Facilities
Fire resistance and durability tend to dominate the conversation around metallic versus foam wedges, but hygiene is an underrated differentiator that matters significantly in specific facility types. Open-cell foam is porous by design, which is exactly what makes it acoustically absorptive, but that same porosity traps dust, particulates, and moisture over time, and foam is genuinely difficult to clean without damaging its acoustic surface. In pharmaceutical-adjacent test labs, food and appliance testing facilities, or any environment operating near cleanroom-level contamination control, a wipeable, non-porous metallic wedge surface is a meaningful advantage that has nothing to do with acoustic performance and everything to do with maintaining the facility’s broader contamination control standards. This is worth raising explicitly with your acoustic chamber manufacturer if your test facility sits inside or adjacent to a controlled environment, since it’s rarely the first specification a buyer thinks to ask about.
Advantages Over Traditional Foam Absorbers
Foam absorbers can degrade due to humidity, temperature, and aging, while metallic anechoic wedges provide long-term structural stability and resistance to environmental stress, with the metal casing protecting the internal fiberglass core while maintaining acoustic transparency. Fire resistance is a key differentiator, eliminating risks associated with combustible foam materials in industrial and regulated environments, alongside better mechanical protection against accidental impact or wear during heavy, continuous chamber use.
Myth vs Reality
| Myth | Reality |
|---|---|
| Only the core material determines absorption performance | Perforation ratio and hole size affect performance too |
| A wedge product line has one fixed frequency range | Depth determines frequency range within the same product |
| Foam and metallic wedges perform identically over time | Foam degrades with humidity, heat, and age, metal does not |
| Hygiene only matters for cleanrooms, not test chambers | Regulated or pharma-adjacent labs need cleanable surfaces too |
| Metallic wedges are only for large automotive chambers | Depth-tuned metallic wedges suit many chamber sizes |
Installation and Integration
For optimal performance, metallic anechoic wedge modules are mounted on engineered support systems that maintain alignment and full surface coverage. Proper integration ensures there are no reflective gaps between units, enabling uniform sound absorption across every treated chamber surface. Professional installation is what allows the system to actually achieve its designed acoustic performance targets and long-term operational reliability, rather than the theoretical performance of the wedge units alone.
How to Choose a Metallic Anechoic Wedges Manufacturer in India
- Ask for wedge depth specified against your chamber's actual target frequency range, not a generic "broadband" claim.
- Confirm perforation ratio and hole geometry on the outer casing, not just the fiberglass core's absorption rating.
- Verify fire performance and non-combustibility documentation if your facility carries fuel, electrical, or combustion risk.
- If your facility is pharma-adjacent or contamination-controlled, ask specifically about surface cleanability.
- Check the support and fixing system design to ensure full coverage with no reflective gaps between modules.
- Request post-installation acoustic qualification against ISO 3744/3745, not just wedge-level specification sheets.
Frequently Asked Questions
What is the difference between metallic and foam anechoic wedges?
Do metallic anechoic wedges absorb low frequency sound?
Are metallic anechoic wedges fire resistant?
How long do metallic anechoic wedges last compared to foam?
Can metallic anechoic wedges be cleaned easily?
What determines a metallic wedge's frequency performance?
Are metallic anechoic wedges used in automotive NVH testing?
Do metallic anechoic wedges need special installation support?
Are metallic anechoic wedges more expensive than foam?
Can metallic anechoic wedges be customised for specific chambers?
About Ecotone Systems
Ecotone Systems is a manufacturer of advanced acoustic solutions for industrial, commercial, and research applications, specialising in precision-engineered sound control systems designed to meet global performance and safety standards. With expertise spanning acoustic engineering and fabrication, Ecotone Systems delivers products that combine durability, safety, and acoustic efficiency for laboratories, manufacturing plants, testing facilities, and infrastructure projects requiring reliable noise control.
Get a Site-Specific Metallic Anechoic Wedges Quote
Whether you're building a new automotive NVH chamber, refurbishing an aerospace acoustic lab currently lined with degraded foam, or specifying wedges for a hygiene-sensitive test facility, Ecotone Systems manufactures metallic anechoic wedges with depth and perforation engineered to your actual target frequency, not a generic broadband claim.
Free-field chambers for precise noise measurement.
NVH chambers with a solid floor for vehicles and engines.

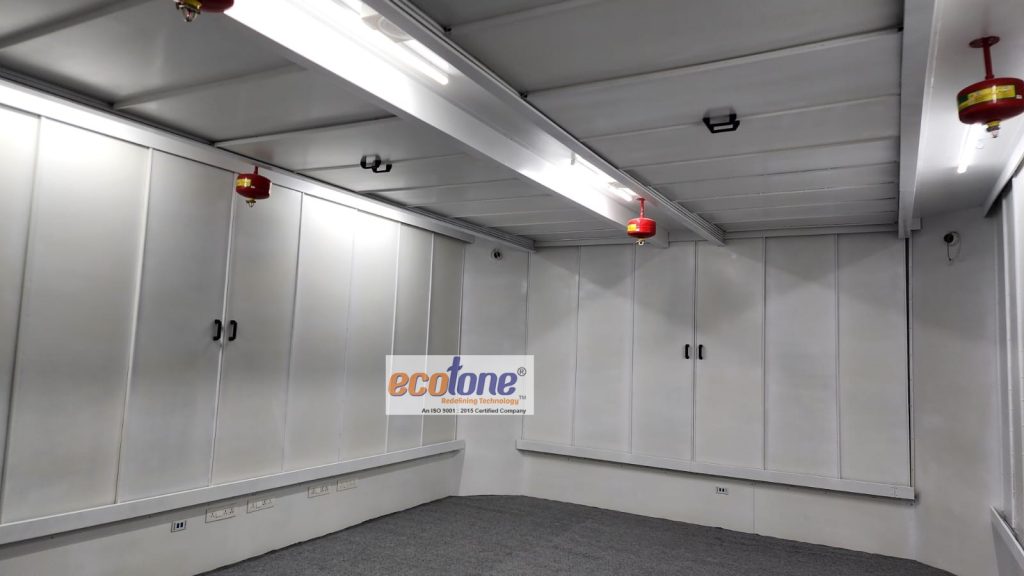

Diffuse-field rooms for sound power and EMC testing.
