Chassis Dynamometer Test Room Manufacturer
Summary: A chassis dynamometer test room is an engineered, acoustically controlled facility built around a full-vehicle dynamometer, combining acoustics, ventilation, vehicle cooling, and smoke extraction so cars and trucks can be tested for performance, fuel economy, emissions, and onboard diagnostics under safe, repeatable conditions. Automotive OEMs, powertrain labs, and vehicle testing facility planners in India who are specifying a chassis dynamometer test room, comparing manufacturers, or troubleshooting a room where test data doesn’t match expectations.
Is This Chassis Dynamometer Test Room Guide Right for You?
Who It's For
Automotive and truck manufacturers, component and tire suppliers, emissions and fuel economy test labs, and facilities running front-wheel, rear-wheel, or all-wheel drive vehicle testing.
When to Use This Guide
Before finalising a chassis dynamometer test room manufacturer in India, while comparing cooling and acoustic claims across quotes, or when an AWD test setup is producing inconsistent drivetrain or emissions results.
What Is a Chassis Dynamometer Test Room?

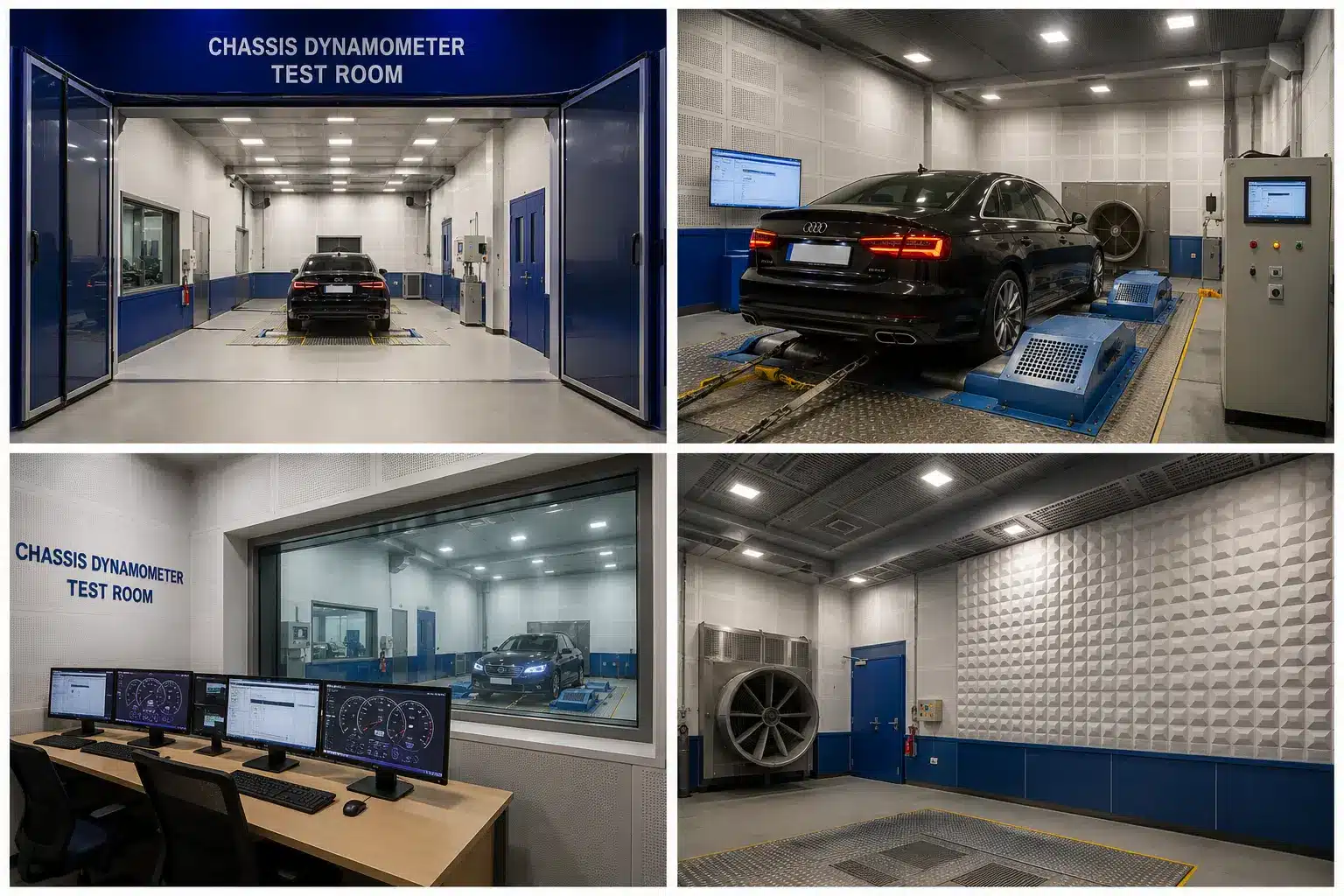

A chassis dynamometer test room is a purpose-built facility that houses a full vehicle on a chassis dynamometer, rollers that load the vehicle’s wheels to simulate road conditions, so engineers can measure fuel economy, emissions, onboard diagnostics, and NVH performance under controlled, repeatable conditions. Unlike an engine dyno test cell, which tests a bare engine on a stand, a chassis dynamometer test room has to manage a full vehicle’s cooling needs, airflow across the radiator, tire temperature, and transmission heat, while also housing a human driver who follows a target speed trace for much of the test. Rooms are custom-sized to the dynamometer configuration, front-wheel, rear-wheel, or all-wheel drive, and built with acoustic wall and roof panels, acoustic doors, soundproof viewing windows, and an operator control room. If you needed the one-line definition, that’s it. The sections below cover what actually separates a chassis dyno room that produces trustworthy data from one that only looks the part.
Why Automotive Test Labs in India Are Specifying Purpose-Built Chassis Dynamometer Rooms
Chassis dynamometer testing is unusual among automotive test methods because a human driver is often part of the measurement chain, manually or semi-manually tracking a target speed trace through a fuel economy or emissions cycle. SAE J2951, the recommended practice for drive quality evaluation in chassis dynamometer testing, defines metrics such as Root Mean Square Speed Error and Interval Work Ratio specifically to quantify how closely an actual drive trace matches the target, because driver-introduced variability is a real, measurable source of test-to-test scatter. A test room’s layout, visibility, and operator comfort directly influence how consistently a driver can track that trace, which means room design is not just an acoustics and safety matter, it has a direct line to data quality. This guide explains what to check before committing to a chassis dynamometer test room manufacturer in India.
Specifications, Benefits, Applications & Installation Process
| Parameter | Standard Specification |
|---|---|
| Room sizing | Custom, matched to FWD, RWD, or AWD dynamometer setup |
| Construction | Dismountable, factory-finished acoustic wall and roof panels |
| Doors | Single or double-leaf acoustic doors up to 12 feet wide |
| Operator room noise | 60 dB(A) ambient inside the control room |
| Ventilation | Powerful ventilation with interior exhaust stack |
| Cooling | Auxiliary fans for transmission and tire cooling |
| Safety monitoring | CO and CO2 sensors with building automation system |
| Benefit | Impact |
|---|---|
| Accurate, repeatable testing | Uniform test environment reduces result variability |
| Operator safety | Controlled noise, CO, and CO2 levels protect technicians |
| Faster construction | Dismountable design builds faster than conventional construction |
| Flexible configuration | Relocate or reconfigure as test programmes change |
| Single-source responsibility | One supplier for design, supply, and installation |
| Vehicle versatility | Rooms sized for FWD, RWD, and AWD vehicles |
| Indoor or outdoor deployment | Suits a range of facility layouts and climates |
| Application | Typical Use |
|---|---|
| Fuel economy testing | Standard drive cycle fuel consumption evaluation |
| Vehicle emissions testing | Regulatory and R&D emissions measurement |
| Onboard diagnostics testing | OBD system validation under load |
| Automotive NVH testing | Full-vehicle noise and vibration evaluation |
| AWD drivetrain testing | Multi-axis roll testing for all-wheel drive vehicles |
| Truck dynamometer testing | Commercial vehicle performance evaluation |
| Full vehicle testing facility | General R&D and durability test programmes |
| Step | Action |
|---|---|
| 1. Requirement study | Confirm dynamometer type, vehicle sizes, and test programme |
| 2. Room sizing and layout | Size room to FWD, RWD, or AWD dynamometer configuration |
| 3. Factory panel fabrication | Acoustic wall and roof panels finished off-site |
| 4. Civil and pit preparation | Foundation and dynamometer pit prepared on site |
| 5. Dismountable assembly | Panels, doors, and windows erected on site |
| 6. Systems integration | Ventilation, cooling fans, and sensors installed |
| 7. Commissioning | Noise, airflow, and safety systems tested and handed over |
Technical Data Sheet
| Property | Value / Standard |
|---|---|
| Product | Chassis Dynamometer Test Room |
| Construction | Dismountable, factory-finished acoustic panels |
| Doors | Single or double-leaf, up to 12 feet wide |
| Viewing windows | Soundproof, sized to requirement |
| Operator room noise | 60 dB(A) ambient |
| Ventilation | Powerful system with interior exhaust stack |
| Cooling | Auxiliary fans for transmission and tire cooling |
| Safety monitoring | CO and CO2 sensors, building automation integration |
| Dynamometer compatibility | FWD, RWD, and AWD configurations |
| Drive quality reference | SAE J2951, drive trace conformity evaluation |
| Customisation | Room size, layout, indoor or outdoor deployment |
Driver Variability Is a Bigger Source of Test Error Than Most Facilities Budget For
Chassis dynamometer testing frequently depends on a human driver tracking a target speed trace through a fuel economy or emissions cycle, and that introduces a source of measurement scatter that a fully automated engine test cell never faces. SAE J2951 exists specifically to quantify this, defining metrics like Root Mean Square Speed Error and Interval Work Ratio so labs can judge whether a given drive run was close enough to the target trace to be considered valid. What’s less discussed is that the test room itself influences driver performance, poor sightlines to the display, an uncomfortable or awkwardly positioned seating position relative to the viewing window, or a noisy, distracting cabin all make it measurably harder for a driver to track the trace precisely. A facility treating the operator cabin purely as a safety and comfort feature, rather than a factor that affects drive quality metrics and therefore data scatter, is missing a real source of test-to-test variability that has nothing to do with the vehicle being tested.
Why Full Vehicle Chassis Rooms Need Fundamentally Different Cooling Than Engine Cells
An engine dyno test cell cools a bare engine with a water circuit and ambient airflow. A chassis dynamometer test room has to replicate road-speed cooling conditions for a stationary vehicle, which is a genuinely different engineering problem. Without forward motion, the vehicle’s radiator and intercooler get none of the ram air they’d receive on the road, so auxiliary cooling fans have to simulate that airflow accurately enough that the engine doesn’t run hotter on the dyno than it would at the same load on the road, which would distort both performance and emissions results. On top of that, chassis testing introduces two cooling needs an engine cell never has: tire temperature, which affects the rolling resistance and friction coefficient the dynamometer rolls actually measure, and transmission cooling, particularly significant on AWD vehicles where multi-axis roll testing generates more drivetrain heat than a single-roll setup. A chassis dynamometer test room’s auxiliary fan package has to be sized against all three, engine, tire, and transmission cooling, not just scaled up from an engine cell’s water-cooling approach.
AWD Dynamometer Rooms Need More Than a Bigger Room: The Multi-Axis Roll Synchronization Problem
All-wheel drive dynamometer testing is often treated as simply needing a bigger room to fit a larger roll set, but the real engineering challenge is synchronization, not size. An AWD vehicle’s front and rear axles are mechanically coupled through the drivetrain, so the front and rear roll sets have to be precisely matched in speed and load throughout the test, because any mismatch creates artificial drivetrain windup or wheel slip that doesn’t exist in real-world driving and can skew both performance data and, in extreme cases, stress the vehicle’s drivetrain components. This has direct consequences for the test room itself, the facility needs vibration isolation and structural design that account for a more complex, higher-load multi-axis dynamometer than an FWD or RWD setup, and the room’s utility and control infrastructure needs to support the tighter synchronization tolerances the dynamometer control system requires. Specifying an AWD dynamometer test room as “the same room, just bigger” overlooks the structural and control integration work that actually makes AWD testing valid.
Accessories and Options
Myth vs Reality
| Myth | Reality |
|---|---|
| The operator cabin only affects comfort, not data | Poor cabin design can worsen driver trace accuracy |
| Chassis and engine test cells need the same cooling | Chassis rooms also need tire and transmission cooling |
| AWD testing just needs a bigger room | Roll synchronization, not size, is the real engineering challenge |
| Acoustic panels alone guarantee repeatable results | Ventilation, cooling, and layout all affect data quality |
| Dismountable construction means lower quality | It enables faster builds without compromising performance |
Why Choose a Dismountable Chassis Dynamometer Test Room
A dismountable chassis dynamometer test room facilitates more accurate testing by producing a uniform, repeatable test environment, while creating a safer environment for test technicians through controlled noise, CO, and CO2 levels. Standard and custom layouts support large vehicles, and rooms can be installed indoors or outdoors for all vehicle models. Dismountable construction is easier to build than conventional construction, and single-source responsibility for design, supply, and installation makes the room easy to assemble, relocate, or reconfigure as test programmes evolve.
How to Choose a Chassis Dynamometer Test Room Manufacturer in India
Ask how the operator cabin's layout and visibility were designed to support accurate drive trace tracking, not just comfort.
Confirm the auxiliary cooling package is sized for engine, tire, and transmission heat, not just engine cooling.
For AWD testing, ask specifically how roll synchronization and structural vibration isolation are engineered into the room.
Check door and viewing window sizing against your largest vehicle, including trucks if relevant.
Verify CO and CO2 sensor integration with a building automation system for operator safety.
Request references from facilities running a similar dynamometer configuration, FWD, RWD, or AWD.
Frequently Asked Questions
What is the difference between a chassis dynamometer test room and an engine test cell?
Does the operator cabin affect chassis dynamometer test accuracy?
What cooling does a chassis dynamometer room need?
Can one room test FWD, RWD, and AWD vehicles?
Why is AWD dynamometer testing more complex than FWD or RWD?
How noisy is a chassis dynamometer operator room?
Can a chassis dynamometer test room be relocated later?
What standard governs chassis dynamometer drive quality?
How wide are chassis dynamometer test room doors?
Can chassis dynamometer rooms be installed outdoors?
Get a Site-Specific Chassis Dynamometer Test Room Quote
Whether you're testing fuel economy, emissions, NVH, or AWD drivetrain performance, Ecotone Systems designs and delivers chassis dynamometer test rooms with acoustics, ventilation, cooling, and operator cabin layout engineered around what actually affects your test data, not just a bigger acoustic box.
