Transformer Noise Control & Transformer Noise Reduction Solutions
Noise Control for Transformers at Power Plants, Substations & Industrial Facilities
Summary: Transformer noise control is the reduction of the low-frequency hum that power transformers produce, mainly through magnetostriction in the core, using absorptive noise barriers around the transformer, acoustic enclosures, noise-absorbing linings, and vibration control. Because the hum is concentrated at about 100 Hz and its harmonics on a 50 Hz supply, it travels far and needs mass and absorption designed for low frequencies. This page is for substation, utility, and plant engineers planning transformer noise reduction.
- Designed for low-frequency 100 Hz transformer hum
- Design, manufacture, installation & commissioning
- ISO 9001:2015 certified manufacturer
Get a project quote
Tell us about your requirement and site. Our team typically responds within 24 hours on business days.
Is This Transformer Noise Control Guide Right for You?
Who It's For
Substations near housing, power plants, industrial plants, data centres, commercial buildings with in-house transformers, and utilities facing hum complaints.
When to Use This Guide
When neighbours complain of hum, before installing a transformer near sensitive areas, or when a site must meet a boundary noise limit.
What Is Transformer Noise Control?
Transformer noise control, also called transformer noise reduction, covers the measures used to stop transformer hum from disturbing workers and neighbours. The most common is a transformer noise barrier: an absorptive wall built around the transformer that blocks and absorbs the low-frequency sound. Where more reduction is needed, an acoustic enclosure fully surrounds it, with ventilation for cooling. Linings and vibration control complete the system. Ecotone barriers are fire retardant, weather resistant, self-standing, and built to a custom height for each site. If you needed the one-line definition, that is it.
Why Transformer Hum Is Hard to Control
Transformer noise is continuous, day and night, and concentrated at low frequencies, which travel further and pass through lightweight materials more easily than higher-pitched sound. As cities expand, substations that were once remote now sit beside homes, and night-time limits of 45 dB(A) for residential areas under India’s Noise Pollution (Regulation and Control) Rules, 2000 can be hard to meet. A tonal hum is also more noticeable and annoying than broadband noise at the same level, so effective transformer noise reduction has to be designed for the actual frequencies, not just a headline dB figure.
Solutions, Benefits, Applications & Project Process
| Solution | What It Does |
|---|---|
| Absorptive Noise Barriers | Surround the transformer to block and absorb hum |
| Acoustic Enclosures | Fully contain noise with ventilated design |
| Noise-Absorbing Linings | Reduce reflections inside bays and enclosures |
| Vibration Control | Reduces structure-borne noise from the tank and base |
| Fan Noise Treatment | Addresses cooling fan contribution |
| Barrier Construction | Fire retardant, weather resistant, self-standing |
| Height | Customised to the site and receivers |
| Benefit | Impact |
|---|---|
| Quieter Neighbourhood | Less hum at homes and offices |
| Compliance | Helps meet day and night limits |
| Low-Frequency Design | Mass and absorption sized for hum |
| Safe Operation | No interference with transformer performance |
| Fire Safety | Fire-retardant materials |
| Weather Resistance | Long outdoor service life |
| Flexible Layout | Self-standing barriers fit around bays |
| Application | Typical Site |
|---|---|
| Substations | Urban and peri-urban substations |
| Power Plants | Generator and auxiliary transformers |
| Industrial Plants | Plant substations |
| Data Centres | Transformer yards |
| Commercial Buildings | In-house transformers |
| Renewable Plants | Pooling substations |
| Railway Traction | Traction substations |
| Step | Action |
|---|---|
| 1. Site Assessment | Measure hum level and frequency at receivers |
| 2. Source Analysis | Separate core hum from cooling fan noise |
| 3. Design | Choose barrier or enclosure, height, and materials |
| 4. Clearance Check | Maintain electrical and maintenance clearances |
| 5. Manufacture | Fire-retardant, weather-resistant panels |
| 6. Installation | Self-standing barriers or enclosure erected |
| 7. Verification | Post-installation measurement |
Technical Data Sheet
| Property | Value / Standard |
|---|---|
| Service | Transformer Noise Control |
| Main Noise Source | Core magnetostriction, about 100 Hz and harmonics on 50 Hz supply |
| Secondary Sources | Cooling fans, mechanical vibration |
| Solutions | Absorptive barriers, enclosures, linings, vibration control |
| Barrier Materials | Fire retardant, weather resistant |
| Barrier Structure | Self-standing, custom height |
| Goal | Meet boundary limits without affecting operation |
What Causes Transformer Noise?
Short answer: Magnetostriction: the steel core changes shape slightly every time the magnetic field changes, twice per AC cycle, so a 50 Hz supply makes the core vibrate at about 100 Hz, plus harmonics. The vibration passes into the tank and becomes audible hum.
Magnetostriction
Core expands and contracts with the field.
Twice Per Cycle
50 Hz supply gives a 100 Hz hum.
Tank Radiation
Vibration reaches the tank and radiates.
Cooling Fans
Add broadband noise on top.
Barrier or Enclosure: Which Transformer Noise Reduction Do You Need?
Short answer: A barrier is usually enough when you need a moderate reduction toward one direction; an enclosure is needed for large reductions or when receivers surround the site.

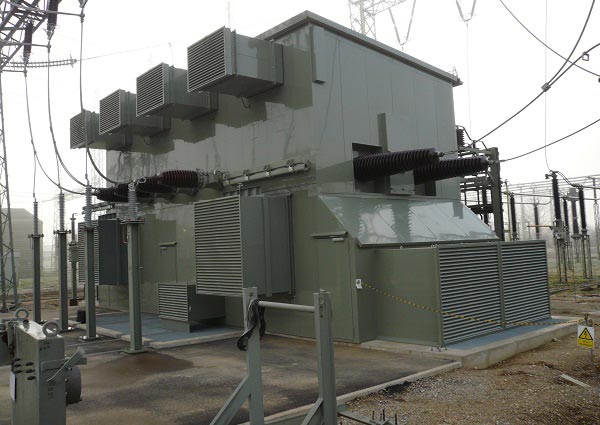

An absorptive noise barrier around the transformer blocks the direct path and absorbs reflections inside the bay, and keeps access simple. When neighbours are close on several sides or the target is very low, an acoustic enclosure gives more reduction but must be ventilated to keep the transformer cool, often with acoustic louvers or attenuators. Both must respect electrical and maintenance clearances.
Low Frequencies Need Mass and the Right Absorber
Hum at 100 Hz has a long wavelength, so thin, light panels let much of it through and shallow absorbers do little. Barriers and enclosures need enough surface mass and a deep enough absorptive lining, and joints must be sealed because low-frequency sound exploits gaps. Vibration isolation at the base can also reduce noise carried into slabs and structures.
Ecotone Systems: Assessment, Design, Manufacture, and Installation
Ecotone Systems is an ISO 9001:2015 certified manufacturer that provides on-site assessments, absorptive barriers, acoustic enclosures, noise-absorbing linings, and vibration control for transformers across India, developed to meet environmental limits without affecting transformer operation.
How to Choose a Transformer Noise Control Supplier in India
Measure the Hum
Ask for measurements at receivers, including low frequencies.
Check Low-Frequency Design
Confirm panel mass and absorber depth suit 100 Hz hum.
Confirm Cooling
Enclosures must keep the transformer within temperature.
Respect Clearances
Check electrical and maintenance access.
Verify Fire Performance
Ask for fire-retardant material data.
See Similar Projects
Ask for substation or plant references.
Frequently Asked Questions
Magnetostriction makes the core vibrate as the magnetic field changes.
About 100 Hz on a 50 Hz supply, plus harmonics.
With absorptive barriers, enclosures, linings, and vibration control.
Barriers suit moderate reductions; enclosures give more but need ventilation.
Ecotone barriers use fire-retardant materials.
Barriers are open-topped; enclosures are designed with ventilation.
It has long wavelengths and passes through light materials.
Yes, fans add broadband noise on top of the hum.
Yes, they are built for outdoor exposure.
Yes, every project starts with an assessment.
Get a Project Quote for Transformer Noise Control
Whether a substation hum is disturbing neighbours or a new transformer is going in near homes, Ecotone Systems measures the noise, designs the transformer noise reduction solution, and manufactures and installs it. Tell us the transformer rating, site, and nearest receivers, and our team typically responds within 24 hours on business days.
