Gas Air Tight Doors | Airtight Door Manufacturer in India
Gas Air Tight Doors for Cleanrooms, Labs, Chemical Plants, CA Storage & Food Processing
Summary: A gas air tight door, also called an airtight door or gas tight door, is a heavy-duty sealed door that stops air, gas, dust, moisture, and contaminants passing between two spaces, using compression gaskets, rubber seals, or inflatable seals on a reinforced leaf and frame. Ecotone Systems manufactures hinged, sliding, vertical sliding, and automated airtight doors in galvanized steel, stainless steel, powder-coated steel, or aluminium for cleanrooms, laboratories, chemical plants, CA/ULO storage, and food processing. This page is for engineers specifying an airtight door.
- Compression, rubber, or inflatable seals
- Design, manufacture, installation & commissioning
- ISO 9001:2015 certified manufacturer
Get a project quote
Tell us about your requirement and site. Our team typically responds within 24 hours on business days.
Is This Airtight Door Guide Right for You?
Who It's For
Cleanrooms, laboratories and biotech facilities, chemical and petrochemical plants, CA/ULO cold storage, food processing units, wastewater plants, and isolation or pressure-controlled rooms.
When to Use This Guide
Before choosing a seal type and door style, while comparing airtight door quotes, or when an existing door is leaking gas, air, or dust.
What Is a Gas Air Tight Door?

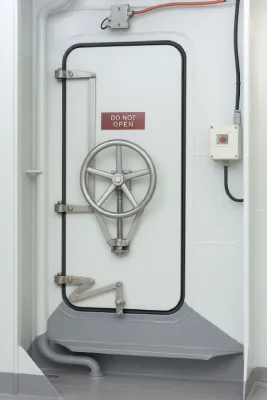

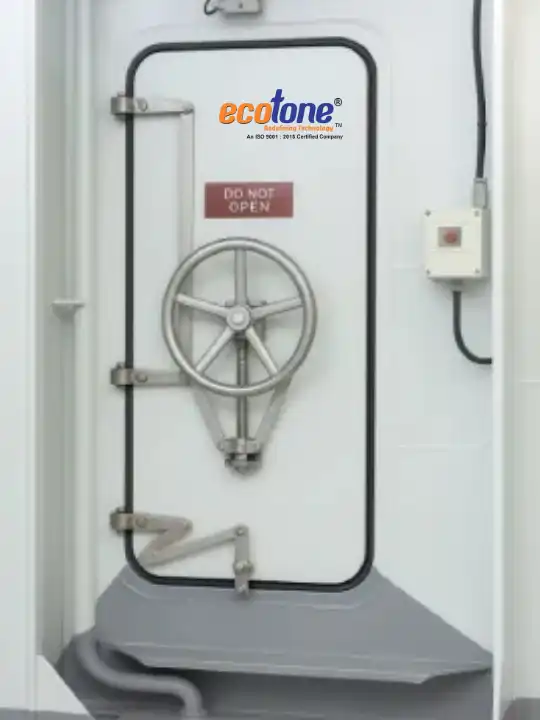

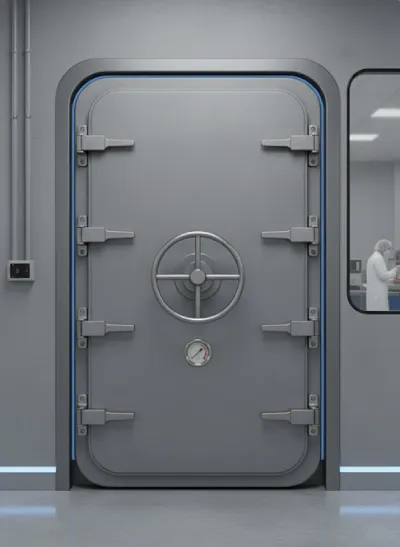

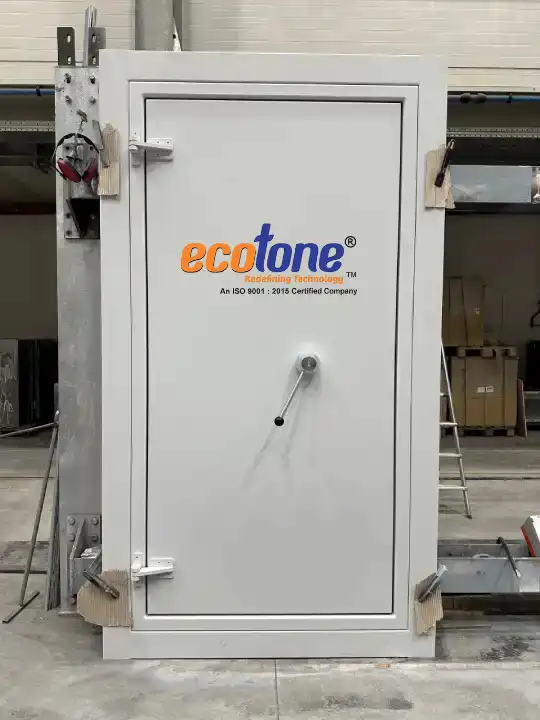

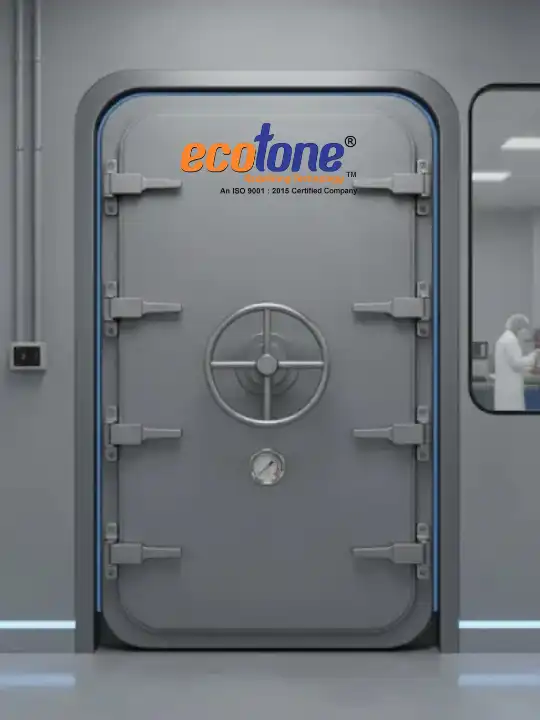

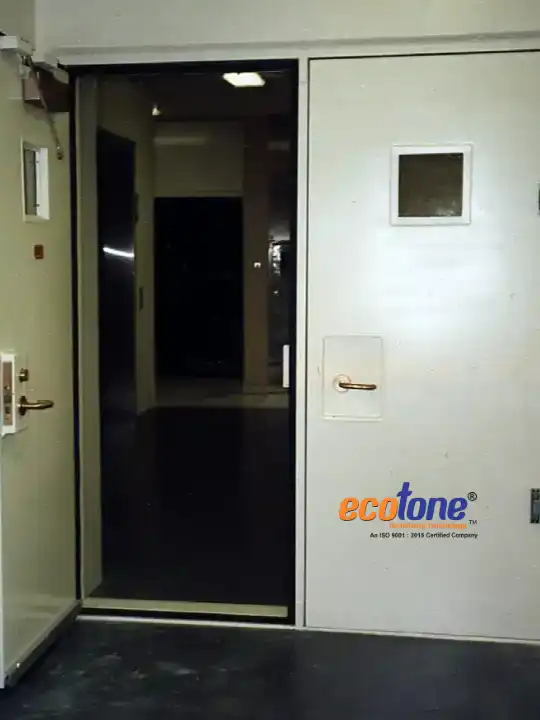

A gas air tight door, also called an airtight door, air tight door, or gas tight door, is a door designed to keep the atmosphere on each side separate. It combines a heavy-duty frame, a reinforced leaf, and a precision sealing system: compression gaskets and rubber seals for general sealing, or inflatable seals for high-pressure or controlled-atmosphere rooms. Ecotone builds them in galvanized steel, stainless steel, powder-coated steel, or aluminium, as hinged, sliding, vertical sliding, or automated doors, with options for sealed vision panels, fire rating, blast resistance, and hygienic finishes. If you needed the one-line definition, that is it.
Why Controlled Environments Need Gas-Tight Doors
In a cleanroom, a CA storage chamber, or a chemical area, the door is the most frequently opened part of the envelope and the most likely place for leakage. Even a small leak can let in contaminants, let gas escape, spoil stored produce, or upset pressure cascades. A purpose-built airtight door maintains gas concentration, humidity, temperature, or particle-free conditions, protects people and equipment, and supports regulatory compliance. For cleanroom envelopes, see our modular cleanroom solutions.
Specifications, Benefits, Applications & Installation Process
| Parameter | Standard Specification |
|---|---|
| Door Types | Hinged, sliding, vertical sliding, automated |
| Leaf | Reinforced door leaf |
| Frame | Heavy-duty frame |
| Seals | Compression gaskets, rubber seals, inflatable seals |
| Materials | Galvanized steel, stainless steel, powder-coated steel, aluminium |
| Vision Panel | Optional sealed vision panel |
| Ratings | Optional fire-rated or blast-resistant construction |
| Finish | Hygiene-friendly finishes on request |
| Benefit | Impact |
|---|---|
| Leak Control | Keeps gas, air, dust, and moisture contained |
| Stable Conditions | Maintains pressure, humidity, and temperature |
| Contamination Control | Supports cleanroom and sterile areas |
| Safety | Limits hazardous gas escape |
| Corrosion Resistance | Material choice for harsh environments |
| Fast Installation | Prefabricated for quick fitting |
| Flexible Design | Door type to suit space and traffic |
| Application | Typical Facility |
|---|---|
| Cleanrooms | Pharma, electronics, medical devices |
| Laboratories and Biotech | Sterile and containment areas |
| Chemical and Petrochemical | Gas containment zones |
| CA/ULO Storage | Controlled-atmosphere fruit storage |
| Cold Storage | Temperature-controlled chambers |
| Food Processing | Hygiene and dust control |
| Wastewater Treatment | Fume and odour control |
| Step | Action |
|---|---|
| 1. Requirement | Define isolation level, pressure, and environment |
| 2. Seal Selection | Compression, rubber, or inflatable seals |
| 3. Door Type | Hinged, sliding, vertical, or automated |
| 4. Material Choice | Steel, stainless, coated, or aluminium |
| 5. Fabrication | Prefabricated with precise tolerances |
| 6. Installation | Into existing walls or modular enclosures |
| 7. Testing | Seal check and operational trials |
Technical Data Sheet
| Property | Value / Standard |
|---|---|
| Product | Gas Air Tight Door |
| Purpose | Prevent air, gas, dust, moisture, and contaminant leakage |
| Seal Options | Compression gaskets, rubber seals, inflatable seals |
| Materials | Galvanized steel, stainless steel, powder-coated steel, aluminium |
| Operation | Manual or automated |
| Styles | Hinged, sliding, vertical sliding |
| Options | Sealed vision panel, fire rating, blast resistance, hygienic finish |
How Does an Airtight Door Seal?
Short answer: A rigid frame and reinforced leaf hold the seal under even pressure all round; compression gaskets are squeezed as the door closes, while inflatable seals expand after closing to fill the gap completely.
Rigid Frame
Keeps the sealing line true.
Reinforced Leaf
Resists flexing under pressure.
Compression Gaskets
Seal as the door closes.
Inflatable Seals
Expand to seal high-demand rooms.
Compression or Inflatable Seals: Which Do You Need?
Short answer: Compression gaskets suit most cleanrooms and general controlled areas; inflatable seals suit high-pressure, gas-containment, or controlled-atmosphere rooms where leakage must be minimal.
Compression gaskets are simple and reliable, but rely on the door closing evenly. Inflatable seals inflate after the door is shut, pressing against the frame regardless of small misalignments, which is why they are used in CA/ULO storage and gas-containment rooms. The choice depends on the isolation level required, pressure difference, and how often the door is used.
Door Type, Materials, and Traffic
Hinged doors suit low-traffic rooms; sliding and vertical sliding doors save space and suit vehicle access; automated doors suit high-frequency access. Stainless steel suits hygiene-critical and corrosive areas, galvanized and powder-coated steel suit general industry, and aluminium saves weight. Selecting the right combination keeps the seal effective over thousands of cycles.
Ecotone Systems: Design, Manufacture, Installation, and Commissioning
Ecotone Systems is an ISO 9001:2015 certified manufacturer of gas air tight doors, acoustic doors, and blast proof doors, designed and installed to fit existing walls or modular enclosures across India.
How to Choose an Airtight Door Manufacturer in India
Define the Isolation Level
Gas containment, cleanroom, or general industrial.
Choose the Seal Type
Compression gasket or inflatable seal.
Match the Material
Stainless, galvanized, coated steel, or aluminium.
Plan Door Type and Traffic
Hinged, sliding, vertical, or automated.
Ask About Testing
How sealing performance is checked on site.
Check Options
Vision panels, fire rating, blast resistance.
Frequently Asked Questions
A sealed door that stops air, gas, dust, and moisture passing between spaces.
Cleanrooms, labs, chemical plants, CA/ULO storage, food processing.
Compression gaskets, rubber seals, or inflatable seals.
Galvanized steel, stainless steel, powder-coated steel, or aluminium.
Hinged, sliding, vertical sliding, and automated.
Yes, fire-rated designs are available.
Yes, sealed vision panels are available.
Yes, they help prevent leaks and contamination.
Based on isolation level, door type, environment, and options.
Yes, they are prefabricated to fit existing walls or modular enclosures.
Get a Project Quote for Gas Air Tight Doors
Whether you need an airtight door for a cleanroom, a gas tight door for a chemical area, or sealed doors for CA storage, Ecotone Systems designs, manufactures, and installs them for your conditions. Share room size, sealing needs, and environment, and our team typically responds within 24 hours on business days.
