Precast Concrete Noise Barrier | Concrete Sound Barrier Walls
Precast Concrete Noise Barriers for Highways, Railways & Industrial Zones
Summary: A precast concrete noise barrier is a high-mass sound barrier wall made of factory-cast, steel-reinforced concrete panels stacked between steel H-beams or concrete posts, used along highways, railways, and industrial boundaries to block traffic, rail, and machinery noise. Ecotone’s 100 mm panels have a density above 2400 kg/m³, an STC rating of 35 to 45, and a cementitious acoustic-diffuser face on the noise side. This page is for highway, rail, and plant engineers specifying a concrete sound barrier wall.
- STC 35 to 45 with 100 mm reinforced panels
- Design, manufacture, installation & commissioning
- ISO 9001:2015 certified manufacturer
Get a project quote
Tell us about your requirement and site. Our team typically responds within 24 hours on business days.
Is This Concrete Noise Barrier Guide Right for You?
Who It's For
Highway and expressway projects, railway corridors, industrial facilities, and residential boundaries that need a durable, low-maintenance, high-mass noise wall.
When to Use This Guide
Before choosing between concrete, metal, and transparent barriers, while comparing precast concrete noise barrier quotes, or when planning post sizes for your wind zone.
What Is a Precast Concrete Noise Barrier?

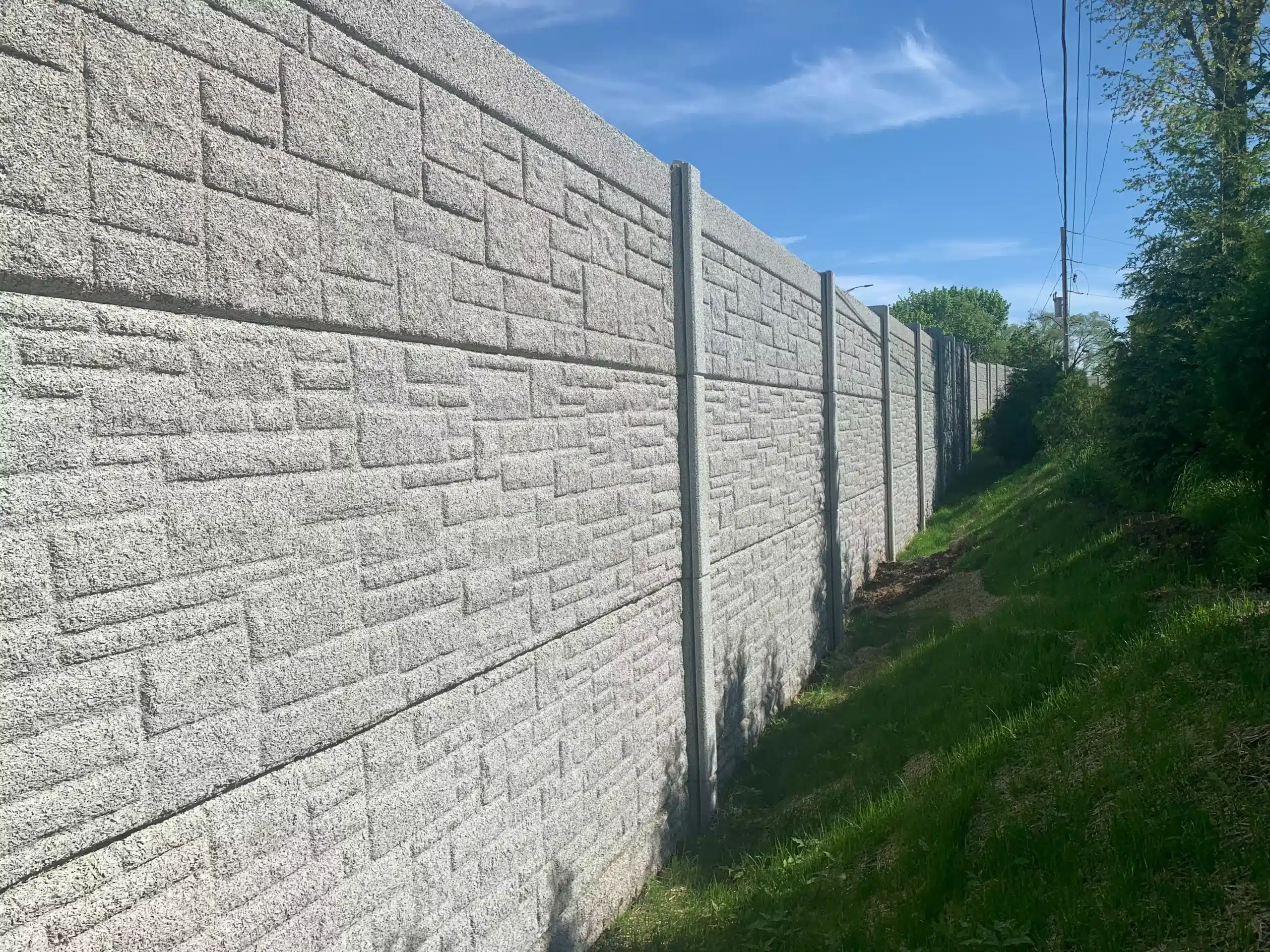

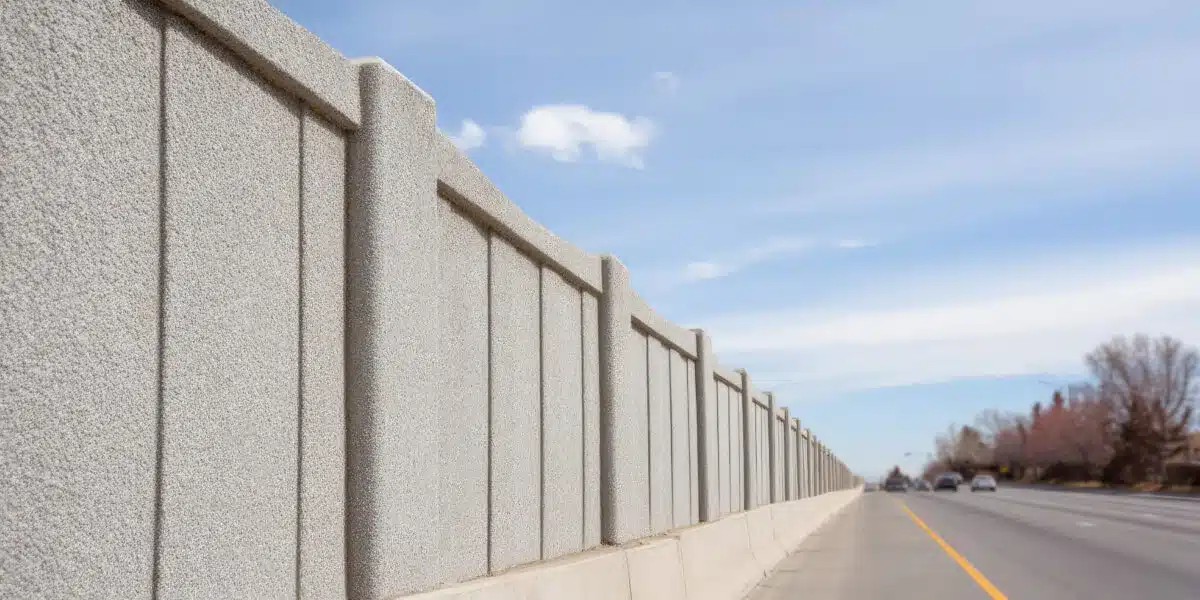

A precast concrete noise barrier, also called a concrete sound barrier wall or concrete noise barrier, is a wall of factory-cast concrete panels that blocks sound by sheer mass. Ecotone’s panels are 100 mm thick, made from high-density concrete above 2400 kg/m³ with steel wire reinforcement, in sizes of 500 × 3000 mm and 1000 × 2500 mm. The noise-source face carries a specialised cementitious acoustic-diffuser layer whose textured, varied geometry scatters sound instead of reflecting it straight back. Panels have tongue-and-groove edges and stack between heavy-duty steel H-beams or concrete posts. If you needed the one-line definition, that is it. The sections below cover when concrete is the right choice and what to check.
Why Highways and Railways Choose Concrete Sound Barrier Walls
Mass is the single most important property for blocking airborne sound, and concrete is one of the densest construction materials available. That gives a concrete sound barrier wall high sound insulation, while the material is fire resistant, rot proof, and immune to corrosion and warping. Because panels are precast in a factory, quality and acoustic consistency are controlled before they reach site. These walls are typically built for very long service lives with little maintenance, which matters on highways and rail lines where access for repairs is costly. They help keep residential areas within the 55 dB(A) day and 45 dB(A) night limits of India’s Noise Pollution (Regulation and Control) Rules, 2000. For lighter options, see metallic noise barriers.
Specifications, Benefits, Applications & Installation Process
| Parameter | Standard Specification |
|---|---|
| Panel Size | 500 × 3000 mm and 1000 × 2500 mm |
| Thickness | 100 mm (approx. 4 inches) |
| Material | High-density precast concrete |
| Density | Above 2400 kg/m³ |
| Reinforcement | Steel wire |
| Acoustic Face | Cementitious acoustic-diffuser layer |
| Acoustic Performance | STC 35 to 45 |
| Installation | Tongue and groove between steel H-beams or concrete posts |
| Benefit | Impact |
|---|---|
| High Mass | Strong sound insulation |
| Diffuser Face | Scatters sound, reduces harsh reflections |
| Long Service Life | Virtually maintenance free |
| Fire and Rot Proof | No corrosion or warping |
| Impact Resistance | Reinforced for wind, vibration, and impact |
| Factory Quality | Consistent panels from controlled casting |
| Fast Assembly | Panels slot between posts |
| Application | Typical Site |
|---|---|
| Highways and Expressways | Tyre and engine noise near housing |

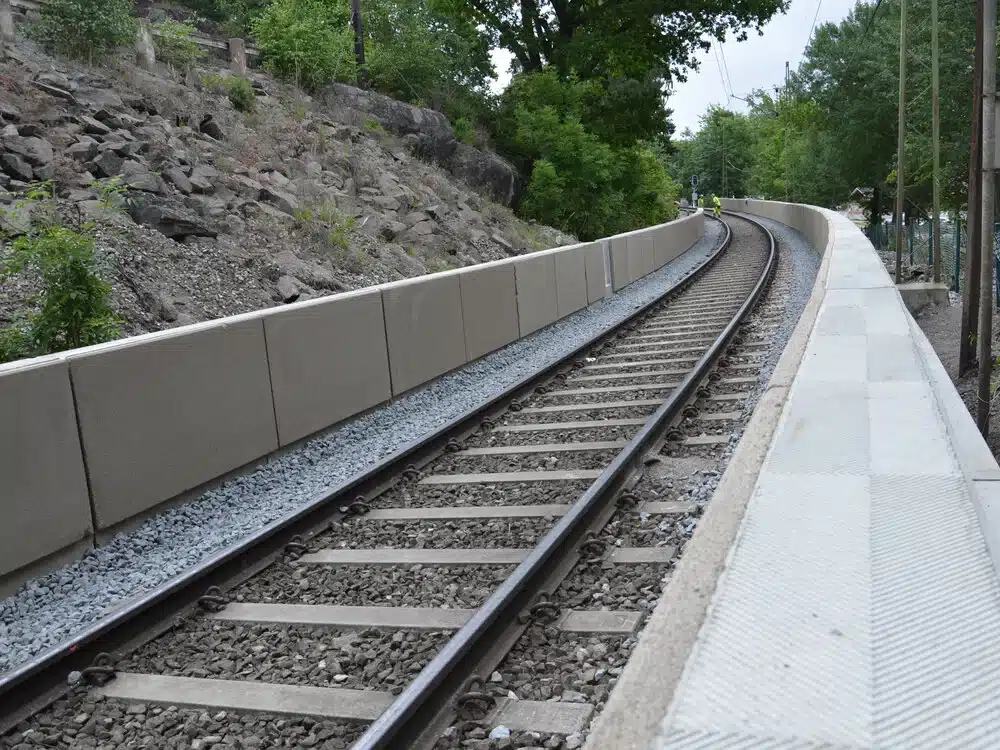

| Railways | Train rumble and horn noise |
| Metro Corridors | At-grade sections |
| Industrial Facilities | Machinery and HVAC noise |
| Residential Boundaries | Townships beside roads |
| Logistics Yards | Truck and loading noise |
| Power and Utility Sites | Equipment yards |
| Step | Action |
|---|---|
| 1. Noise Survey | Measure levels at receivers |
| 2. Acoustic Design | Set wall height and length |
| 3. Structural Design | Post size for wall height and wind zone |
| 4. Precasting | Panels cast and cured in the factory |
| 5. Foundation | Post footings prepared |
| 6. Erection | Posts set, panels stacked tongue and groove |
| 7. Verification | Noise and alignment check |
Technical Data Sheet
| Property | Value / Standard |
|---|---|
| Product | Precast Concrete Sound Barrier Wall |
| Panel Sizes | 500 × 3000 mm, 1000 × 2500 mm |
| Thickness | 100 mm |
| Density | Above 2400 kg/m³ |
| Reinforcement | Steel wire |
| Acoustic Face | Cementitious acoustic diffuser |
| STC Rating | 35 to 45 |
| Joints | Tongue and groove |
| Posts | Steel H-beams or concrete posts, sized for height and wind zone |
| Finish | Range of textures and finishes |
How Does a Concrete Noise Barrier Block Sound?
Short answer: Its mass stops sound passing through the wall, its height forces sound to bend over the top and lose energy, and the diffuser face scatters sound rather than reflecting it straight back.
Mass
Dense concrete resists sound transmission.
Blocking
The wall breaks the line of sight to receivers.
Diffusion
Textured face scatters reflections.
Continuity
Tongue-and-groove joints limit leaks.
Reflective or Absorptive Concrete: Which Do You Need?
Short answer: A plain reflective face suits open highways and industrial perimeters with nothing sensitive on the source side; a diffuser or absorptive face is better in dense corridors where reflections could reach buildings opposite.
Smooth concrete reflects sound strongly. Where homes or offices line both sides of a road or railway, those reflections can travel across and reduce the benefit. Ecotone’s cementitious diffuser face breaks up and scatters the reflected energy, helping protect both sides. On the road-facing side, specify the face treatment from the site layout, not by default.
Post Size, Wind Zone, and Foundations
A concrete wall is heavy and catches a lot of wind, so post size and foundations must be designed for the wall height and the project’s wind zone. Undersized posts can lean or crack panels over time, and a gap at the base lets sound leak under the wall. Ask for the post and footing design, and how the bottom panel is sealed to the ground.
Ecotone Systems: Design, Manufacture, Installation, and Commissioning
Ecotone Systems is an ISO 9001:2015 certified manufacturer supplying precast concrete noise barriers, road noise barriers, and polycarbonate noise barriers across India.
How to Choose a Concrete Noise Barrier Manufacturer in India
Ask for the STC Basis
Confirm how the STC 35 to 45 figure was tested for your panel.
Check Density and Reinforcement
Confirm density above 2400 kg/m³ and reinforcement details.
Review Post Design
Ask for post and footing design for height and wind zone.
Confirm the Face Treatment
Decide on reflective or diffuser face from the site layout.
Inspect Joint and Base Sealing
Check tongue-and-groove fit and base seal.
See Similar Projects
Ask for highway, rail, or industrial references.
Frequently Asked Questions
Ecotone panels typically achieve STC 35 to 45.
100 mm, about 4 inches.
Above 2400 kg/m³, with steel wire reinforcement.
500 × 3000 mm and 1000 × 2500 mm.
Tongue-and-groove panels stack between steel H-beams or concrete posts.
Plain concrete does; the diffuser face scatters reflections.
Virtually, with no corrosion, rot, or warping.
Highways, railways, metro corridors, and industrial sites.
Concrete has more mass; metal is lighter and faster to install.
Yes, panels come in a range of textures and finishes.
Get a Project Quote for Concrete Sound Barrier Walls
Whether you need a precast concrete noise barrier for a highway, a railway, or an industrial boundary, Ecotone Systems designs the wall height and post system for your wind zone and supplies the panels. Tell us the site and length needed, and our team typically responds within 24 hours on business days.
