Power projects run on deadlines, and deadlines don’t forgive much. A delayed substation means idle turbines, idle conveyors, idle revenue. Civil work drags, cabling takes longer than anyone budgeted for, and commissioning turns into a month of finding problems nobody flagged earlier. This is the exact headache a prefabricated electrical house is built to remove.
If you’ve been digging into modular power solutions for a plant, refinery, mine, or renewable site, you’ve probably run into the term already. So what is a prefabricated electrical house, really, and does it actually solve the problems it claims to?
What Is a Prefabricated Electrical House?

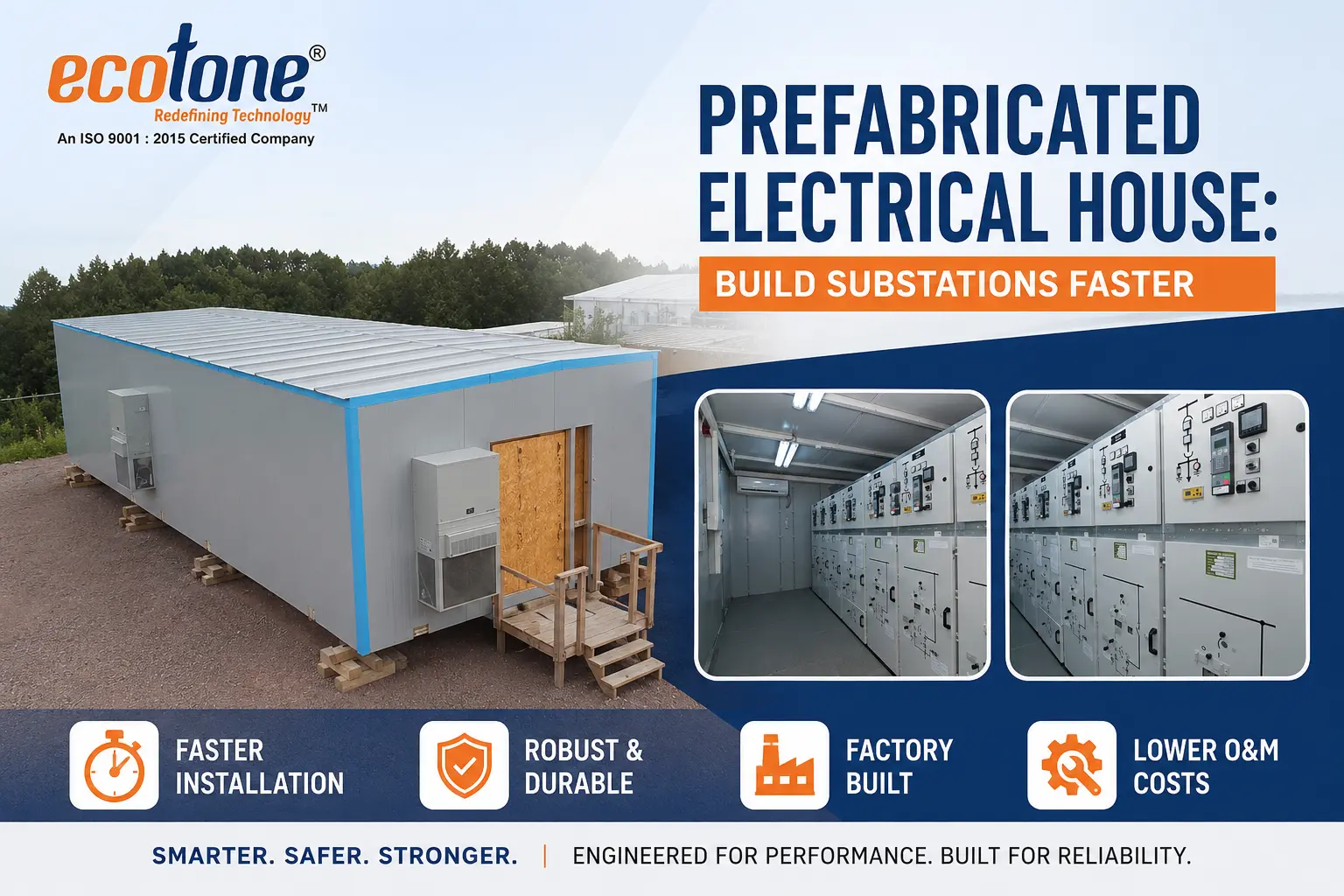

Strip away the jargon and a prefabricated electrical house — most people just call it an E-House — is a complete electrical room built inside a factory rather than on a construction site. Switchgear, transformers, controls, cabling, it’s all wired in and tested before the unit ever leaves the shop floor. What shows up at site is close to finished. Not a shell waiting for equipment. A working system waiting for a foundation and a few connections.
Compare that to the old way of doing things. Pour the foundation. Put up the building. Bring in panels one truck at a time. Route cable trays. Install switchgear. Test everything in place, hope nothing was missed. Every one of those steps depends on the last one finishing first, and weather, labor shortages, or a late shipment can stall the whole sequence for weeks.
That’s really the whole pitch behind a prefabricated electrical house: move as much of the work as possible off the critical path and into a factory where conditions are controlled and predictable.
Why So Many Projects Are Switching Over
Traditional substations are sequential by nature. Civil work has to finish before panels arrive. Panels have to be in place before cabling starts. Cabling has to be done before testing can even begin. One delay early on ripples through everything after it.
A prefabricated electrical house sidesteps a lot of that. Site civil work and factory manufacturing happen at the same time instead of back to back, so the overall schedule compresses hard — engineering teams commonly see commissioning timelines fall 50 to 70% compared to a conventional build. Costs tend to drop too, often somewhere in the 20-30% range, mostly because there’s less rework, less idle labor standing around, and far fewer surprises once the unit is finally on site.
That last part matters more than people expect. Because the whole system gets tested at the factory before shipment, the things that usually blow up a commissioning schedule — wiring errors, mismatched components, equipment that doesn’t talk to the SCADA system the way it’s supposed to — mostly get caught before the unit ever leaves the building.
What’s Actually Inside One of These Things
No two E-Houses are identical, but most of them are built around the same core systems:
- MV switchgear. Air- or gas-insulated panels, usually somewhere between 3.3 kV and 36 kV, with vacuum breakers and numerical relays doing the protection work.
- LV distribution and motor control. Switchboards, intelligent MCCs, VFDs — whatever the downstream loads need.
- Transformers and the supporting cast. Dry-type or oil-filled units, battery banks, DC systems, UPS. All wired before it ships.
- SCADA and protection. RTUs, PLCs, relays, arc-flash protection, configured to match however the plant is actually run.
- HVAC, lighting, fire safety. Climate control (often with redundancy built in), emergency lighting, and suppression systems like VESDA or clean agent.
- The enclosure itself. Welded steel, insulated panels, weatherproofing, IP-rated. Blast or arc-resistant versions exist for sites that need them.
That’s the difference between a real prefabricated electrical house and a glorified shipping container with some gear bolted in. One is a code-compliant electrical facility. The other is a box. Ecotone Systems, for what it’s worth, builds toward the first definition — every unit gets engineered to match the specific load and site rather than pulled off a generic template.
Where E-Houses Actually Get Used
Power generation plants — thermal, hydro, captive — lean on them for switchgear and auxiliary systems that need to be reliable from day one. Oil, gas, and petrochemical sites use hazardous-area rated versions for refineries and offshore platforms, where the stakes for getting it wrong are obviously higher. Solar and wind projects often go with skid-mounted units for inverter stations or battery storage. Mining operations need ruggedized builds that can survive underground or in genuinely harsh conditions. Even data centers use pre-engineered electrical rooms now, mostly to keep up with UPS and cooling loads that keep growing.
Steel mills, cement plants, metro lines, ports, airports — the list keeps going, honestly. Wherever there’s a tight schedule and a real power need, a prefabricated electrical house tends to show up somewhere in the plan. Different sectors, different voltage classes, different climate demands. The engineering changes every time even if the basic concept doesn’t.
So What Separates a Good Manufacturer From a Risky One?
Anyone with a welder can put together a steel box. Building something that actually functions as a substation is a different skill entirely. A few things are worth checking before you hand someone a project this size.
Real in-house engineering, for one — not outsourced to whoever’s cheapest that quarter. Factory Acceptance Testing before the unit ships, so problems get found in the shop and not on your site. Actual compliance with IEC and IS standards, not just a claim on a brochure. And ideally one team handling design, manufacture, transport, and commissioning together, instead of five vendors who all point fingers when something doesn’t fit.
Ecotone Systems is one of the manufacturers that’s built its whole process around answering those questions correctly. They design and manufacture factory-tested E-Houses across power, oil and gas, renewables, and infrastructure projects in India, engineering each unit for the voltage class, climate, and site conditions it’s actually going into, backed by an ISO-certified quality system rather than just a sales pitch.
Planning One of These for Your Own Project
A few decisions early on shape everything that follows — voltage class, load, what the site climate is actually like (coastal humidity is a different problem than desert heat), whether you need hazardous-area or blast-resistant construction. Get any of that wrong at the planning stage and it costs a lot more to fix later than it would have to just ask the right questions upfront.
The suppliers who do this well tend to start the same way: review your load data, your voltage levels, your site conditions, then come back with a technical concept and a real budget before any manufacturing starts. That early back-and-forth is usually what separates a project that ships in six months from one that drags on for a year and a half.
Final Thoughts
A prefabricated electrical house used to be a niche choice for projects in a hurry. Now it’s close to the default for anyone serious about hitting a deadline, because it removes so much of the uncertainty that comes with building a substation the old way. Factory testing replaces guesswork. Parallel schedules replace a long sequential chain. One accountable supplier replaces a pile of subcontractors pointing fingers at each other.
If you’re scoping a new substation or upgrading an existing one, it’s worth understanding how this actually works, and what to look for in a partner like Ecotone Systems before committing to a design.
FAQs - Electrical House | Ecotone Systems
What's the real difference between a prefabricated electrical house and a traditional substation?
Timeline and risk, mostly. A traditional substation goes up on-site, step by step, over several months. An E-House gets built and tested in a factory as one finished unit, then it’s shipped and dropped in — far less time, far less chance of something going sideways mid-build.
How long does it actually take to build one?
Depends on the voltage class, the size, how custom the design is. But almost always faster than building on-site, since the factory work and the site’s civil work run in parallel instead of waiting on each other.
What voltage range can an E-House handle?
Typically 3.3 kV to 36 kV on the medium-voltage side, with low-voltage distribution layered in too. Comes down to what the specific project actually calls for.
Can these be used in hazardous areas like refineries?
Yes. Several manufacturers, Ecotone Systems among them, build hazardous-area rated versions for refineries, offshore platforms, and similar process facilities that need the extra certification.
Can the design handle extreme climates?
That part’s baked into the engineering from the start — insulation, HVAC sizing, even the coatings on the steel get adjusted for whatever the site throws at it. Desert heat, coastal salt air, freezing cold, doesn’t matter.
What kind of testing happens before it ships?
Factory Acceptance Testing. A full run-through of switchgear, controls, and auxiliaries while it’s still in the building. By the time it reaches site, commissioning should be a formality, not a discovery process.
Is it actually cheaper than building a conventional substation?
Usually. Less civil work, less idle labor sitting around, fewer mid-project surprises that quietly inflate the budget. Most estimates land somewhere around a 20-30% saving.
Which industries use these the most?
Power generation, oil and gas, renewables, mining, data centers, steel, cement, rail, ports, airports — pretty much anywhere that needs reliable power fast and can’t afford a long build.
Do they include fire safety systems?
Most standard builds, yes. Fire detection, suppression like VESDA or clean agent, emergency lighting, access control. Part of the package rather than something you bolt on afterward.
Where do I even start planning one of these?
Hand over your load data, voltage requirements, and site conditions to a manufacturer that actually engineers in-house — Ecotone Systems is one — and let them come back with a real technical concept and budget before anything goes into production.
